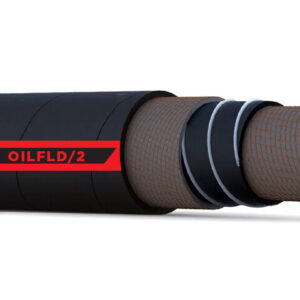

High Pressure Oil & Fuel Delivery Hose

Description

Our Oil & Fuel Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with antistatic copper wires.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black CR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also available with 4:1 safety factor for offshore industry.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-017-025-V	1	25	36	17	250	51	750	670	200	20-40
MO-017-032-V	1 1/4	32	45	17	250	51	750	950	255	20-40
MO-017-038-V	1 1/2	38	51	17	250	51	750	1230	300	20-40
MO-017-051-V	2	51	64	17	250	51	750	1500	410	20-40
MO-017-063-V	2 1/2	63	77	17	250	51	750	1950	500	20-40
MO-017-076-V	3	76	91	17	250	51	750	2600	600	20-40
MO-017-102-V	4	102	119	17	250	51	750	3900	800	20-40
MO-017-127-V	5	127	144	17	250	51	750	4600	1000	20-40
MO-017-152-V	6	152	171	17	250	51	750	5900	1200	20-40
