Bulk Material Para-Delivery Hose

Description

Our Bulk Material Para-Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

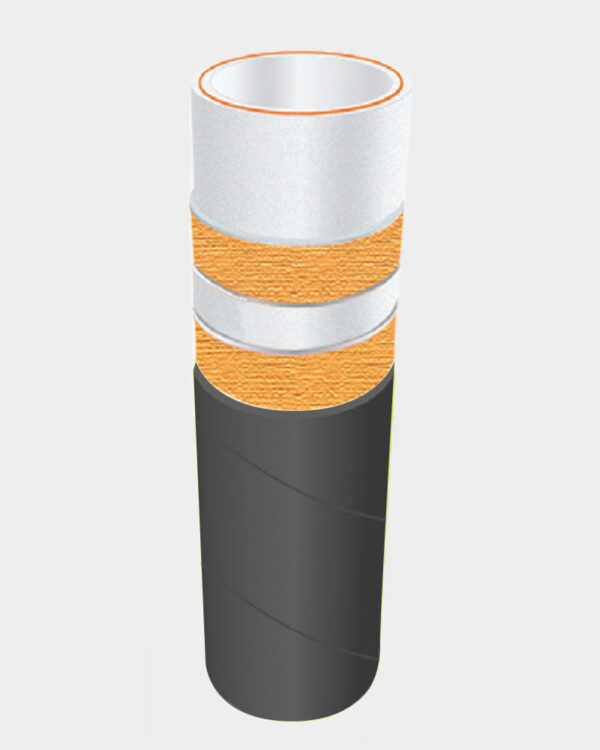

• Tube: High abrasion resistant conductive beige NR.
• Reinforcement: High-tensile synthetic cord with antistatic copper wire.
• Cover: Weather, ozone resistant, abrasion resistant, cloth impression black EPDM.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request 8″, 10″, 12″ available.
• Application: Used for discharge of dry powder, dust and abrasives.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MM-010-025-VP	1	25	37	10	150	30	450	645	200	20-40
MM-010-032-VP	1 1/4	32	44	10	150	30	450	850	255	20-40
MM-010-038-VP	1 1/2	38	52	10	150	30	450	1050	300	20-40
MM-010-051-VP	2	51	66	10	150	30	450	1600	410	20-40
MM-010-063-VP	2 1/2	63	78	10	150	30	450	1700	510	20-40
MM-010-076-VP	3	76	93	10	150	30	450	2670	600	20-40
MM-010-102-VP	4	102	120	10	150	30	450	3600	800	20-40
MM-010-127-VP	5	127	147	10	150	30	450	4800	1000	20-40
MM-010-152-VP	6	152	172	10	150	30	450	5700	1200	20-40
