CONCRETE HOSE – TEXTILE – 85 BAR (1233 PSI)

Description

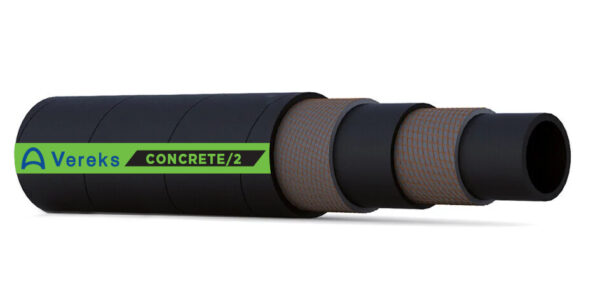

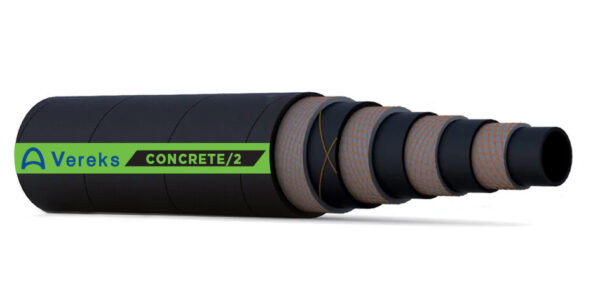

CONCRETE HOSE – TEXTILE – 85 BAR (1233 PSI)

Our CONCRETE/2 is engineered for long term strength abrasive, plaster, cement applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: High abrasion resistant  black NR
• Reinforcement: High-tensile textile cords
• Cover: Weather, ozone resistant, abrasion resistant, cloth impression black SBR/EPDM.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Standart DIN 53516, below: 50 mm3

Application:

• Used for high pressure concrete pumping applications.

C
code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mt
MM-085-025-AC	1	25	42	85	1233	200	2900	1100	40
MM-085-032-AC	1 1/4	32	48	85	1233	200	2900	1250	40
MM-085-038-AC	1 1/2	38	58	85	1233	200	2900	1950	40
MM-085-051-AC	2	51	72	85	1233	200	2900	2500	40
MM-085-063-AC	2 1/2	63	86	85	1233	200	2900	3150	40
MM-085-076-AC	3	76	99	85	1233	200	2900	3700	40
MM-085-102-AC	4	102	126	85	1233	200	2900	4750	40
MM-085-127-AC	5	127	153	85	1233	200	2900	6400	40
