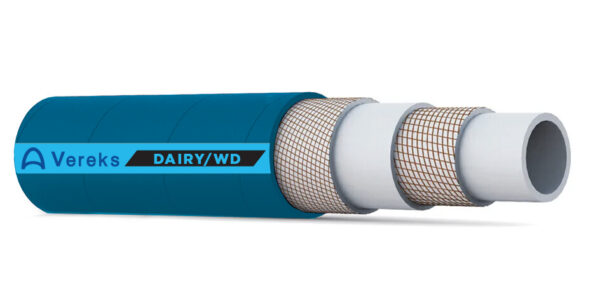

DAIRY/WD DAIRY WASHDOWN HOSE 10 BAR (150 PSI)

Description

DAIRY WASHDOWN HOSE 10 BAR (150 PSI)

Our DAIRY/WD Hose is engineered for reliability in steam applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

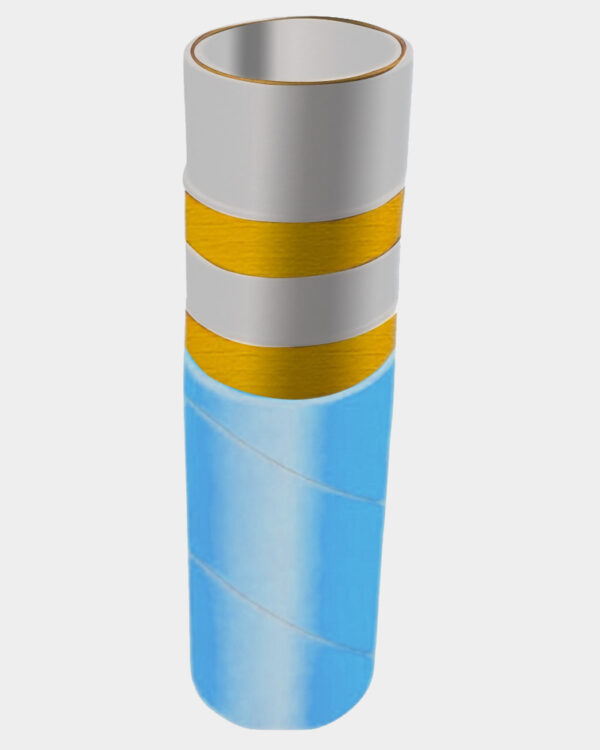

• Tube: Seamless Steam resistant white EPDM
• Reinforcement: High-tensile synthetic cord for added strength and durability.
• Cover: Blue EPDM -Steam, ozone, and weather resisitant.
• Temperature Range: -30°C to +165°C (-22°F to +330°F)
• Remarks: For the Tube FDA approved ingredients are used.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MS-010-013-VB	1/2	13	23	10	150	100	1500	350	75	40
MS-010-016-VB	5/8	16	26	10	150	100	1500	430	90	40
MS-010-019-VB	3/4	19	30	10	150	100	1500	600	125	40
MS-010-025-VB	1	25	37	10	150	100	1500	740	170	40
MS-010-032-VB	1 1/4	32	44	10	150	100	1500	930	230	40
MS-010-038-VB	1 1/2	38	52	10	150	100	1500	1180	285	40
MS-010-051-VB	2	51	65	10	150	100	1500	1750	370	40
