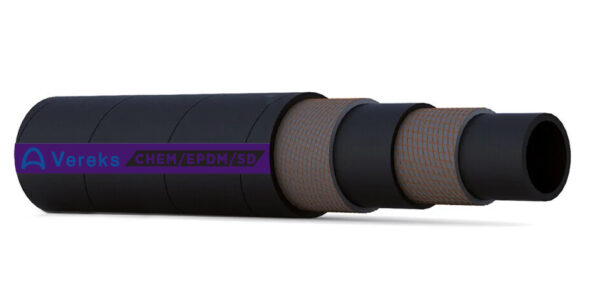

CHEMICAL EPDM SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

Description

Our EPDM Chemical Suction and Delivery Hose is engineered for reliability in chemical and acids applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Chemical resistant smooth black EPDM.
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wires.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression black EPDM.
• Temperature Range: -30°C to +100°C (-22°F to +212°F)

Applications :

• Ideal for use suction and discharge of chemicals and acids

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MX-010-019-AE	3/4	19	31	10	150	40	600	660	120	20-40
MX-010-025-AE	1	25	37	10	150	40	600	800	150	20-40
MX-010-032-aE	1 1/4	32	44	10	150	40	600	1050	200	20-40
MX-010-038-AE	1 1/2	38	51	10	150	40	600	1320	230	20-40
MX-010-051-AE	2	51	65	10	150	40	600	1850	300	20-40
MX-010-063-AE	2 1/2	63	79	10	150	40	600	2640	380	20-40
MX-010-076-AE	3	76	92	10	150	40	600	3200	450	20-40
MX-010-102-AE	4	102	118	10	150	40	600	4200	600	20-40
