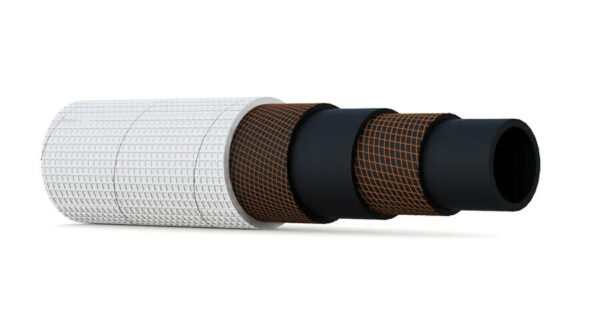

FRN COOL FURNACE DOOR COOLING HOSE 10 BAR (150 PSI)

Description

FURNACE DOOR COOLING HOSE 10 BAR (150 PSI)

Our FRN COOL is engineered for convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: EPDM,white,smooth and non-conductive
• Reinforcement: 2 ply synthetic fabric Cover:Glass fibre ply impregnated with heat and flame resistant synthetic rubber
• Cover: One ply of white fiberglass fabric.
• Temperature Range: -40°C to +130°C (-40°F to +266°F)  Cover to intermittent +550℃

Applications:

• The non-conductive furnace door hose is designed for conveying cooling water to furnace doors in steel mills,glass plants and similar operations.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mt
MFG-010-013-V	1/2	13	24	10	150	30	450	420	40
MFG-010-016-V	5/8	16	27	10	150	30	450	500	40
MFG-010-019-V	3/4	19	31	10	150	30	450	625	40
MFG-010-025-V	1	25	37	10	150	30	450	800	40
MFG-010-032-V	1 1/4	32	44	10	150	30	450	950	40
MFG-010-038-V	1 1/2	38	50	10	150	30	450	1100	40
MFG-010-051-V	2	51	64	10	150	30	450	1560	40
