Description
Our Heavy Duty Air Hose is engineered for rigorous use in heavy construction and mining industries.
It offers excellent resistance to harsh environments, ensuring reliable performance over an extended period.

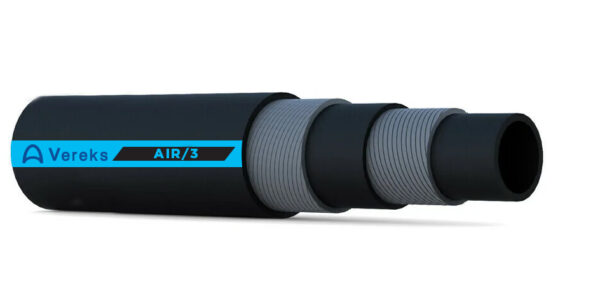

- Tube: Air, water, and oil mist resistant, black smooth SBR/NBR.
- Reinforcement: High-tensile synthetic cord for enhanced strength and durability.
- Cover: Abrasion, weather, and ozone resistant, smooth cloth impression, black SBR/EPDM.
- Temperature Range: -30°C to +85°C (-22°F to +185°F)
Applications:
- Designed for use in heavy construction and mining industries.
- Also available in a yellow cover upon request.
| Code | ID (inch) | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (gr/mt) | Bend Radius (mm) | Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| MA-025-006-V | 1/4 | 6 | 13 | 25 | 375 | 100 | 1500 | 290 | 100 | 20-40 |
| MA-025-008-V | 5/16 | 8 | 16 | 25 | 375 | 100 | 1500 | 400 | 120 | 20-40 |
| MA-025-010-V | 3/8 | 10 | 19 | 25 | 375 | 100 | 1500 | 550 | 160 | 20-40 |
| MA-025-013-V | 1/2 | 13 | 25 | 25 | 375 | 100 | 1500 | 600 | 190 | 20-40 |
| MA-025-016-V | 5/8 | 16 | 28 | 25 | 375 | 100 | 1500 | 800 | 210 | 20-40 |
| MA-025-019-V | 3/4 | 19 | 31 | 25 | 375 | 100 | 1500 | 1050 | 255 | 20-40 |
| MA-025-025-V | 1 | 25 | 39 | 25 | 375 | 100 | 1500 | 1650 | 300 | 20-40 |
| MA-025-032-V | 1 1/4 | 32 | 51 | 25 | 375 | 100 | 1500 | 2150 | 410 | 20-40 |
| MA-025-038-V | 1 1/2 | 38 | 63 | 25 | 375 | 100 | 1500 | 2900 | 500 | 20-40 |
| MA-025-051-V | 2 | 51 | 76 | 25 | 375 | 100 | 1500 | 3650 | 600 | 20-40 |
| MA-025-063-V | 2 1/2 | 63 | 90 | 25 | 375 | 100 | 1500 | 4150 | 720 | 20-40 |
| MA-025-076-V | 3 | 76 | 108 | 25 | 375 | 100 | 1500 | 5500 | 800 | 20-40 |
| MA-025-102-V | 4 | 102 | 120 | 25 | 375 | 100 | 1500 | 7200 | 1000 | 20-40 |
