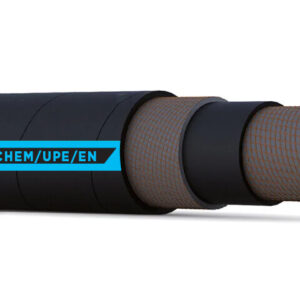

CHEMICAL XLPE DELIVERY HOSE 16 BAR (250 PSI)

Description

Our High Pressure XLPE Chemical Suction and Delivery Hose is engineered for reliability in chemical and acids applications.

Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

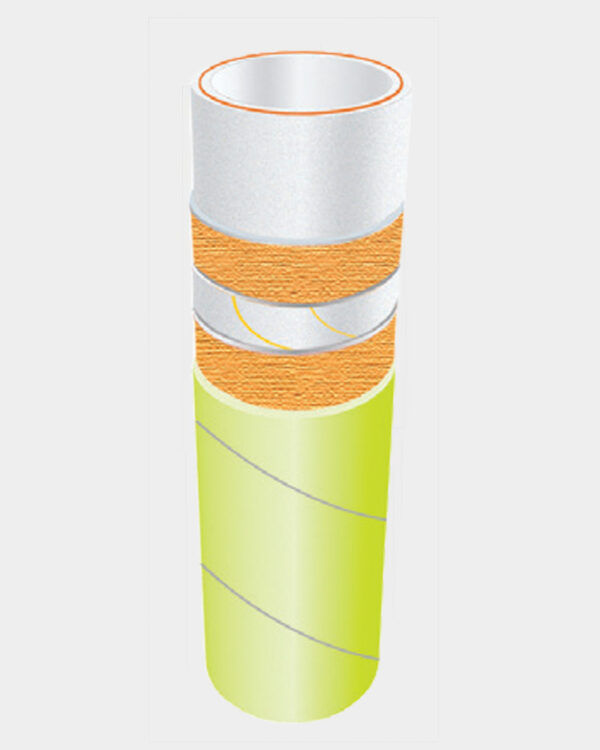

• Tube: Chemical and solvent resistant translucent XLPE.
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wires.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression green EPDM.
• Temperature Range: -30°C to +80°C (-22°F to +176°F)
• Remarks: Standart DIN2823; upon request safety factor 4:1  available for offshore industry.

Aplication:

• Used for suction and discharge of chemicals and acids.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MX-017-019-AX	3/4	19	31	17	250	51	750	630	120	20-40
MX-017-025-AX	1	25	37	17	250	51	750	780	150	20-40
MX-017-032-AX	1 1/4	32	44	17	250	51	750	1000	200	20-40
MX-017-038-AX	1 1/2	38	51	17	250	51	750	1250	230	20-40
MX-017-051-AX	2	51	65	17	250	51	750	1830	300	20-40
MX-017-063-AX	2 1/2	63	79	17	250	51	750	2400	380	20-40
MX-017-076-AX	3	76	92	17	250	51	750	3000	460	20-40
MX-017-102-AX	4	102	118	17	250	51	750	3900	600	20-40
