HOT WATER HOT WATER HOSE 10 BAR (150 PSI)

Description

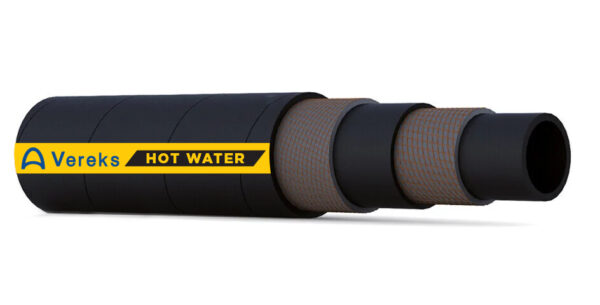

HOT WATER HOSE 10 BAR (150 PSI)

Our Hot Water Hose  is engineered for reliability in medium-pressure hot water and fluid applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Smooth, black EPDM, resistant to hot water.
• Reinforcement: High-tensile synthetic cord
• Cover: Black EPDM with a cloth impression finish, providing abrasion, weather, and ozone resistance.
• Temperature Range: -30°C to +125°C (-22°F to +257°F)

Applications:

• Hot water delivery and for very high temp environments

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MW-010-013-HW	1/2	13	21	10	150	30	450	275	100	40
MW-010-016-HW	5/8	16	25	10	150	30	450	330	120	40
MW-010-019-HW	3/4	19	28	10	150	30	450	440	160	40
MW-010-025-HW	1	25	35	10	150	30	450	540	200	40
MW-010-032-HW	1 1/4	32	42	10	150	30	450	750	255	40
MW-010-038-HW	1 1/2	38	48	10	150	30	450	900	300	40
MW-010-051-HW	2	51	62	10	150	30	450	1200	410	40
MW-010-063-HW	2 1/2	63	74	10	150	30	450	1750	500	40
MW-010-076-HW	3	76	88	10	150	30	450	2200	600	40
MW-010-102-HW	4	102	115	10	150	30	450	3500	800	40
MW-010-127-HW	5	127	141	10	150	30	450	4300	1000	40
MW-010-152-HW	6	152	166	10	150	30	450	5100	1200	40
MW-010-203-HW	8	203	223	10	150	30	450	7250	2000	20
