Description

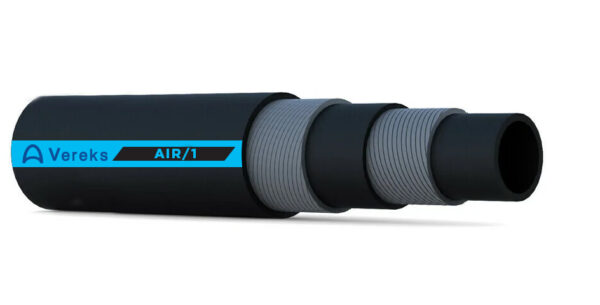

Our Light Duty Air Hose is specially designed for light air service, pneumatic machines, and tools.
It offers excellent durability and flexibility, making it suitable for a wide range of industrial applications.
- Tube: Air, water, and oil mist resistant, smooth black SBR/NBR.
- Reinforcement: High-tensile synthetic cord for enhanced strength.
- Cover: Abrasion, weather, and ozone resistant, smooth cloth impression, black SBR/EPDM.
- Temperature Range: -30°C to +85°C (-22°F to +185°F)
Applications:
- Standard air services and pneumatic tools.
- Also available with a yellow cover upon request.
| Code | ID (inch) | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (gr/mt) | Bend Radius (mm) | Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| MA-010-006-V | 1/4 | 6 | 13 | 10 | 150 | 40 | 600 | 150 | 90 | 20-40 |
| MA-010-008-V | 5/16 | 8 | 16 | 10 | 150 | 40 | 600 | 190 | 120 | 20-40 |
| MA-010-010-V | 3/8 | 10 | 19 | 10 | 150 | 40 | 600 | 230 | 160 | 20-40 |
| MA-010-013-V | 1/2 | 13 | 25 | 10 | 150 | 40 | 600 | 360 | 190 | 20-40 |
| MA-010-016-V | 5/8 | 16 | 29 | 10 | 150 | 40 | 600 | 590 | 210 | 20-40 |
| MA-010-025-V | 1 | 25 | 39 | 10 | 150 | 40 | 600 | 1060 | 260 | 20-40 |
| MA-010-032-V | 1 1/4 | 32 | 50 | 10 | 150 | 40 | 600 | 1800 | 300 | 20-40 |
| MA-010-038-V | 1 1/2 | 38 | 57 | 10 | 150 | 40 | 600 | 2800 | 380 | 20-40 |
| MA-010-051-V | 2 | 51 | 76 | 10 | 150 | 40 | 600 | 3670 | 500 | 20-40 |
| MA-010-063-V | 2 1/2 | 63 | 91 | 10 | 150 | 40 | 600 | 4000 | 720 | 20-40 |
| MA-010-076-V | 3 | 76 | 108 | 10 | 150 | 40 | 600 | 5800 | 800 | 20-40 |
| MA-010-102-V | 4 | 102 | 126 | 10 | 150 | 40 | 600 | 7200 | 1000 | 20-40 |
