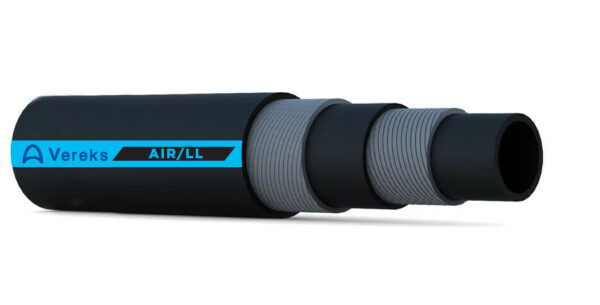

Our Long-Length Medium Duty Air Hose is designed for pneumatic machines and tools requiring extended hose lengths.
Built with high-quality materials, this hose ensures durability, flexibility, and reliable performance for industrial applications.
- Tube: Air, water, and oil mist resistant, smooth black SBR.
- Reinforcement: High-tensile synthetic cord textile for superior strength.
- Cover: Abrasion, weather, and ozone resistant, smooth black SBR.
- Temperature Range: -30°C to +85°C (-22°F to +185°F)
Applications:
- Ideal for pneumatic machines and tools.
- Standard EN ISO 2398 compliant.
| Code | ID (inch) | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (gr/mt) | Bend Radius (mm) | Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| CA-020-005-V | 3/16 | 5 | 11 | 20 | 300 | 60 | 900 | 115 | 50 | 50 |
| CA-020-006-V | 1/4 | 6 | 12 | 20 | 300 | 60 | 900 | 175 | 60 | 50 |
| CA-020-008-V | 5/16 | 8 | 14 | 20 | 300 | 60 | 900 | 210 | 75 | 50 |
| CA-020-010-V | 3/8 | 10 | 17 | 20 | 300 | 60 | 900 | 330 | 90 | 50 |
| CA-020-016-V | 5/8 | 16 | 25 | 20 | 300 | 60 | 900 | 415 | 100 | 50 |
| CA-020-019-V | 3/4 | 19 | 29 | 20 | 300 | 60 | 900 | 530 | 100 | 50 |
| CA-020-025-V | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 695 | 100 | 50 |
