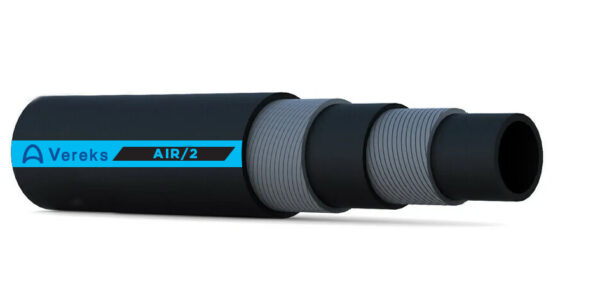

Medium Duty Air Hose

Description

Our Medium Duty Air Hose is designed for robust use in construction, mining, and pneumatic applications, such as rock drills.
It is built with high-quality materials to withstand harsh environments and ensure long-lasting performance.

• Tube: Air, water, and oil mist resistant, smooth black SBR/NBR.
• Reinforcement: High-tensile synthetic cord for superior strength.
• Cover: Abrasion, weather, and ozone resistant, smooth cloth impression, black SBR/EPDM.
• Temperature Range: -30°C to +85°C (-22°F to +185°F)

Applications:

• Ideal for use in the construction and mining industries.
• Suitable for pneumatic tools such as rock drills.
• Available in a yellow cover upon request.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MA-020-013-V	1/2	13	23	20	300	60	900	400	100	40
MA-020-016-V	5/8	16	26	20	300	60	900	460	120	40
MA-020-019-V	3/4	19	31	20	300	60	900	620	160	40
MA-020-025-V	1	25	37	20	300	60	900	730	200	40
MA-020-032-V	1 1/4	32	46	20	300	60	900	1210	255	40
MA-020-038-V	1 1/2	38	52	20	300	60	900	1450	300	40
MA-020-051-V	2	51	67	20	300	60	900	2090	410	40
MA-020-063-V	2 1/2	63	80	20	300	60	900	2540	500	40
MA-020-076-V	3	76	93	20	300	60	900	3250	600	40
MA-020-090-V	3 1/2	90	108	20	300	60	900	3750	720	40
MA-020-102-V	4	102	120	20	300	60	900	4100	800	40
