CHANNELED OIL & FUEL SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

Description

CHANNELED OIL & FUEL SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

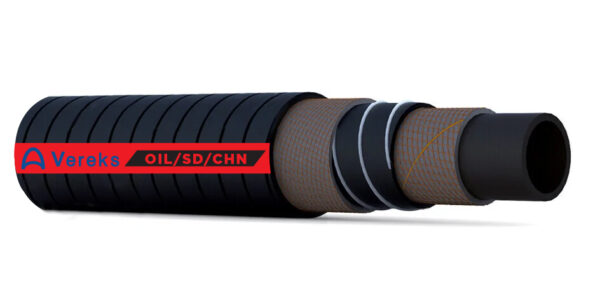

Our OIL/SD/CHN Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with steel wire helix and antistatic copper wires.
• Cover: Oil, weather and ozone resistant, channeled, cloth impression black NBR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also available with 4:1 safety factor for offshore industry.

Applications:

• Ideal for use suction and discharge of petroleum products with aromatic content up to %50

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-010-019-CH	3/4	19	29	10	150	30	450	500	50	20-40
MO-010-025-CH	1	25	36	10	150	30	450	650	70	20-40
MO-010-032-CH	1 1/4	32	43	10	150	30	450	900	90	20-40
MO-010-038-CH	1 1/2	38	49	10	150	30	450	1025	105	20-40
MO-010-051-CH	2	51	63	10	150	30	450	1590	150	20-40
MO-010-063-CH	2 1/2	63	75	10	150	30	450	1900	185	20-40
MO-010-076-CH	3	76	90	10	150	30	450	2600	220	20-40
MO-010-102-CH	4	102	117	10	150	30	450	4250	300	20-40
MO-010-127-CH	5	127	145	10	150	30	450	5900	400	20-40
MO-010-152-CH	6	152	172	10	150	30	450	7250	550	20-40
