OIL & FUEL SUCTION AND DELIVERY HOSE 17 BAR (250 PSI) EN12115 TYPE

Description

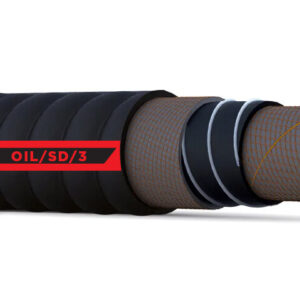

OIL & FUEL SUCTION AND DELIVERY HOSE 17 BAR (250 PSI) EN12115

Our OIL/SD/EN Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with steel wire helix and 2  antistatic copper wires.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black NBR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also available with 4:1 safety factor for offshore industry.

Applications:

• • Ideal for use high pressure of suction and discharge of petroleum products with aromatic content up to %50

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-017-019-EN	3/4	19	31	17	250	51	750	730	125	20-40
MO-017-025-EN	1	25	37	17	250	51	750	850	150	20-40
MO-017-032-EN	1 1/4	32	44	17	250	51	750	1150	190	20-40
MO-017-038-EN	1 1/2	38	51	17	250	51	750	1400	230	20-40
MO-017-051-EN	2	51	67	17	250	51	750	2000	300	20-40
MO-017-063-EN	2 1/2	63	79	17	250	51	750	2800	380	20-40
MO-017-076-EN	3	76	92	17	250	51	750	3450	460	20-40
MO-017-102-EN	4	102	118	17	250	51	750	4800	600	20-40
