SAE J 517 100 R4 HYDRAULIC HOSE

Description

SAE J 517 100 R4 HYDRAULIC HOSE

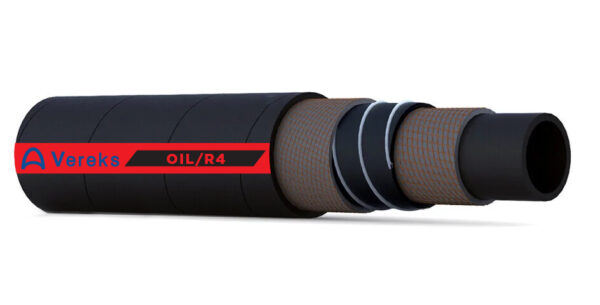

Our Oil/R4 Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Hydrolic Oil resistant black NBR.
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wire.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black NBR.
• Temperature Range: -30°C to +100°C (-22°F to +212°F)

Applications:

• • Ideal for use suction and discharge of hydraulic oil

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
HO-021-019-A	3/4	19	32	21	315	84	1260	770	140	40
HO-017-025-A	1	25	36	17	250	68	1000	880	150	40
HO-014-032-A	1 1/4	32	43	14	210	56	840	1200	200	40
HO-010-038-A	1 1/2	38	49	10	150	40	600	1530	250	40
HO-007-051-A	2	51	63	7	100	28	400	1910	300	40
HO-004-063-A	2 1/2	63	76	4	60	16	240	2620	360	40
HO-004-076-A	3	76	90	4	60	16	240	3150	430	40
HO-002-102-A	4	102	118	2	30	8	120	4200	520	40
