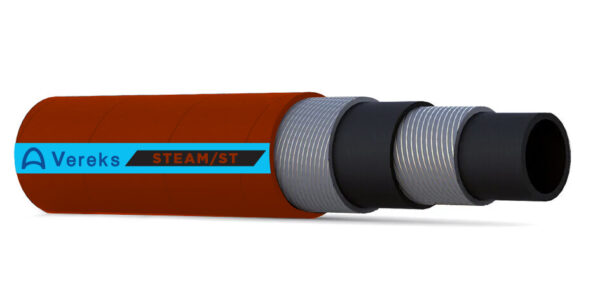

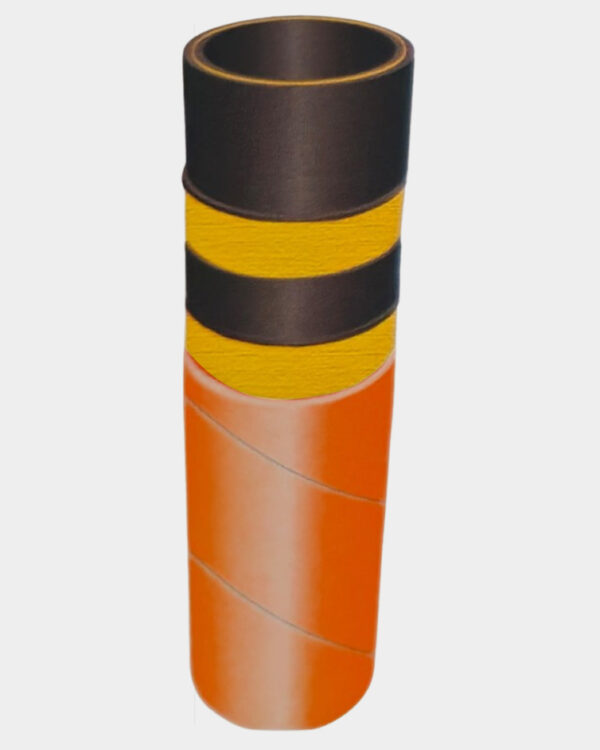

Steel Steam Hose

Description

Our Steel Steam Hose is engineered for reliability in steam applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Seamless Steam resistant black EPDM
• Reinforcement: High-tensile steel cord for added strength and durability.
• Cover: Red EPDM -Steam, ozone, and weather resistant.
• Temperature Range: -30°C to +208°C (-22°F to +400°F)
• Remarks: Standart: BS5342/A2

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MS-017-013-VR	1/2	13	25	17	250	170	2500	550	140	40
MS-017-016-VR	5/8	16	28	17	250	170	2500	650	180	40
MS-017-019-VR	3/4	19	32	17	250	170	2500	800	200	40
MS-017-025-VR	1	25	38	17	250	170	2500	1090	260	40
MS-017-032-VR	1 1/4	32	46	17	250	170	2500	1520	350	40
MS-017-038-VR	1 1/2	38	52	17	250	170	2500	1800	460	40
MS-017-051-VR	2	51	67	17	250	170	2500	2450	600	40
MS-017-063-VR	2 1/2	63	67	17	250	170	2500	3100	750	40
MS-017-076-VR	3	76	67	17	250	170	2500	4300	900	40
MS-017-102-VR	4	102	67	17	250	170	2500	7000	1300	40
