RED CORRUGATED TANK TRUCK PETROLEUM HOSE 150 PSI

Description

RED CORRUGATED TANK TRUCK PETROLEUM HOSE 150 PSI

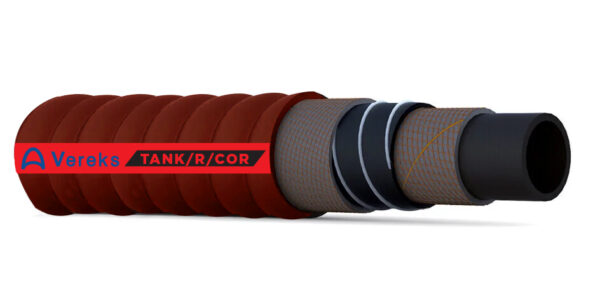

Our TANK/R/COR Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black synthetic rubber
• Reinforcement: High-tensile synthetic cord with steel wire helix antistatic copper wire
• Cover: Oil, petroleum products , weather and ozone resistant, corrugated, cloth impression red synthetic rubber
• Temperature Range: -30°C to +70°C (-22°F to +158°F)

Applications:

• Ideal for use tank trucks and transfer of petroleum products with aromatic content up to %50

code	inch	mm	inch	mm	bar	psi	bar	psi	Lbs/ft	mm	ft
MOT-010-025-R	1	25	1,38	35	10	150	30	450	0,50	80	100
MOT-010-032-R	1 1/4	32	1,65	42	10	150	30	450	0,60	100	100
MOT-010-038-R	1 1/2	38	1,93	49	10	150	30	450	0,72	120	100
MOT-010-051-R	2	51	2,48	63	10	150	30	450	1,1	160	100
MOT-010-063-R	2 1/2	63	2,99	76	10	150	30	450	1,44	190	100
MOT-010-076-R	3	76	3,54	90	10	150	30	450	1,92	220	100
MOT-010-102-R	4	102	4,65	118	10	150	30	450	2,98	290	100
MOT-010-127-R	5	127	5,63	143	10	150	30	450	3,90	360	100
MOT-010-152-R	6	152	6,77	172	10	150	30	450	5,45	450	100
